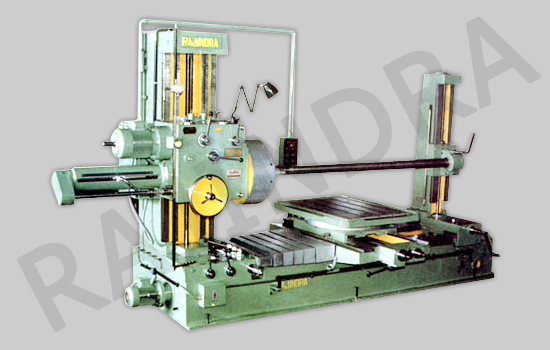

HORIZONTAL BORING MACHINE



Technical Specification Of Horizontal Boring Machine
Particulars
mm
mm
mm
Alloy steel work spindle hardened & Ground-diameter
100
110
120
Morse Taper Number
6
6
6
Max. Longitudinal movement of the working Spindle
550
550
600
Number of spindle speeds
9
9
9
Range of spindle speeds
22 to 242
15 to 200
12 to 200
Longitudinal work spindle feeds nos.
9
9
9
Max. height of the spindle axis from table surface
1100
1150
1200
Min. height of the spindle axis from table surface
30
30
30
Dimensions of the Rotary table
1125 to 1400
1100 to 1400
1200 to 1450
Longitudinal table traverse
1650
1950
2050
Long. table traverse feeds (including one Rapid)
8
8
8
Transversal table travel feeds (including one Rapid)
8
8
8
Vertical Headstock travel feeds (including one Rapid)
8
8
8
Rotary table automatic feeds (including one Rapid)
8
8
8
Max. cross movement of the table
1200
1300
1500
Max. distance between stay bearing and the facing head
2650
2750
2800
Facing head diameter
610
610
650
Weight approximate in kgs.
11000
14500
18000
Specifications are subject to alteration and improvement without notice.
